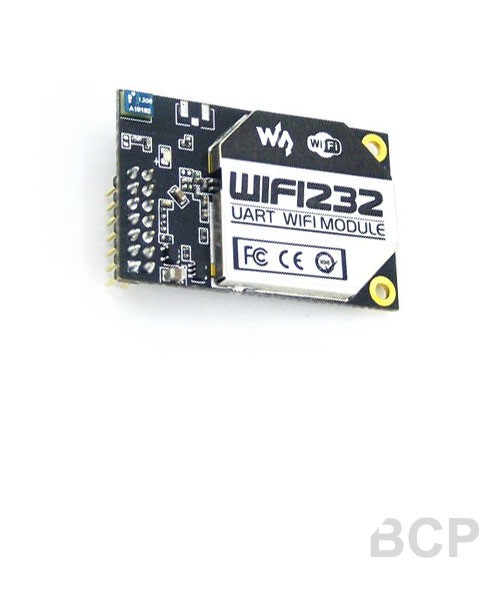

WIFI232-A is an WIFI to UART module with embedded anternna.The main features of this module are-
Marvell high-quality WIFI module, high-speed ARM core, guaranteed process ability and stability
Router solution: hardware AP, supports up to 32 connections of Station mode
Communication distance: 400m with external 3DB antenna, 150m with embedded antenna (communication between two modules under open and wide environment)
Supports WIFI security algorithms: WEP/WAP-PSK/WAP2-PSK/WAPI, etc.
Supports Wireless LAN protocols: IEEE 802.11 b/g/n
Supports network protocols: TCP/UDP/ARP/ICMP/HTTP/DNS/DHCP
Supports multiple working mode: TCP Server/TCP Client/UDP (supports up to 32 Client connections on TCP Server mode)
Supports factory reset: pull-down the Reload IO port, restore the module to its factory settings immediately
Supports router/bridge network architectures
Supports Transparent/Agreement transmission modes, up to 1M cache
Supports DHCP
Supports AT+ instructions set
Supports web page configuration
Support configuring UART frame delay and data volume
Up to 460800bps baud rate
Embedded watch dog timer and Heartbeat mechanism
Embedded PA, bi-transferring data on 57600 baud rate, without packet loss
Provides multiple software: testing software under Windows, Android
Click here to know more
.
Interface: 2.0mm pitch pinheaders
Power supply: 3.3V DC
Dimensions: 25 x 40(mm)
Temperature: -20~80°C
Start up time: 6s only
Power consumption: 3.3V supply, 170mA-300mA
Protection: the module kernel is wrapped safely
Supports AP+STA mode
FCC/CE Certification
TCPB function: supports 2 x TCP, i.e. two network connections at the same time
