Here is a simple, low-cost, high quality servo for all your mechatronic needs. This servo is able to take in 6 volts and deliver 44.4 oz-in. of maximum torque at 0.18 sec/60°.

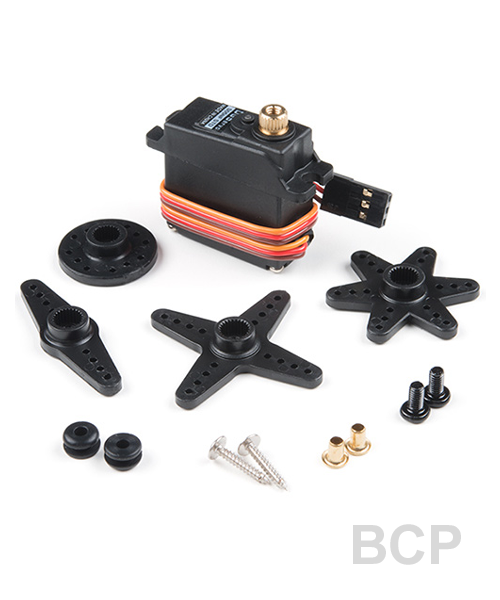

Includes:
1x S05NF Metal Gear Servo
1x Double Arm Horn
1x Circle Horn
2x 3x22mm Phillips Screw
2x 3x2.5mm Phillips Screw
3x 2x9mm Phillips Screw
4x 2mm Nut
Specification:
Voltage: 4.8-6.0 Volts
Torque: 38.8/44.4 oz-in. (4.8/6.0V)
Speed: 0.20/0.18 sec/60° (4.8/6.0V)
Rotation: 180°
Dual Ball Bearing
Metal Gears
C1 Standard Spline
Dimension:28.8 x 13.8 x 30.2mm
Wire Length: 180mm
Weight: 20g
