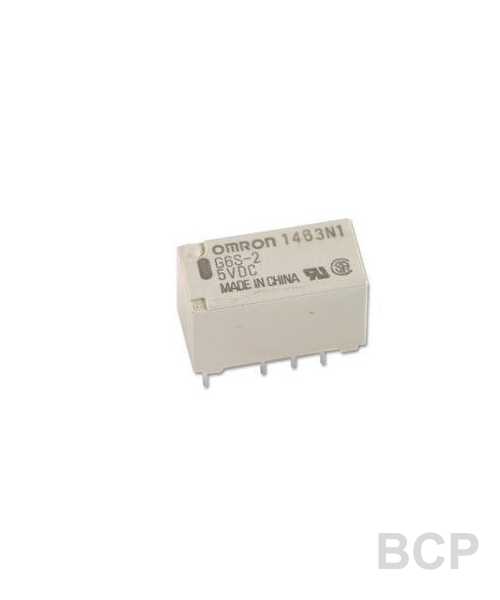

This is a small 5V DPDT relay with dimension: Length = 0.585 inch, Width = 0.280 inch, Height = 0.350 inch.
FEATURES
• High dielectric strength (2,000 VAC) and impulse withstand voltage
between coil and contacts (2,500 V, 2 × 10 μs: Telcordia requirements).
• Ultra-miniature at 9.4 mm (H) × 7.5 mm (W) × 15 mm (L).
Application Examples
• Telecommunication equipment
• Measurement devices
• Office automation machines
• Audio-visual products.
• Security equipment
• Building automation equipment
• Industrial equipment
• Amusement equipment
• Home appliances
Specification:
Dimension
Length = 0.585 inch,
Width = 0.280 inch,
Height = 0.350 inch
Ratings
Item Rated Voltage = 5V
Rated load = 0.5V at 125VAC; 2A at 30VDC
Rated carry current = 2 A
Max. switching voltage 250VAC, 220VDC
Max. switching current 2A
Coil Rated Current = 28.1mA
Coil resistance = 178 ohm
Must operate voltage (V) = 75% max
Must release voltage (V) = 10% min
