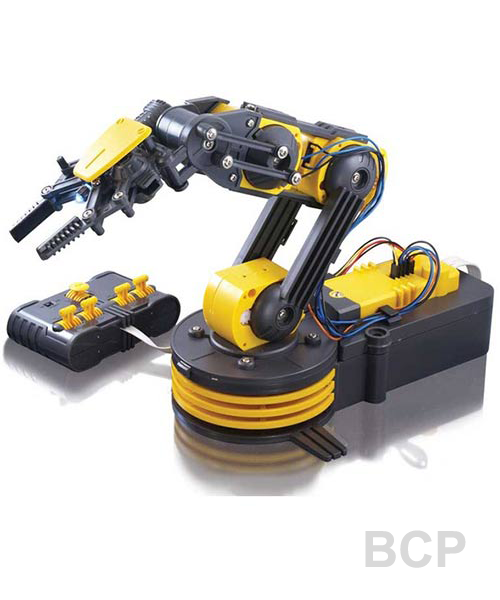

The OWI-535 Robotic Arm Edge Kit is a remote-controlled robotic arm kit with five degrees of freedom, a 3.5oz (100g) lifting capacity, and an LED light. Using five motors with gearboxes, the Edge has a 120° wrist motion, a 300° elbow motion, a 180° shoulder motion, a 270° base motion, and a 0-1.77" (0-4.5cm) gripping motion.
Specification:
wired remote-control with five switches
120° wrist motion
300° elbow motion
180° shoulder motion
270° base motion
15" (38 cm) vertical reach
12.6" (32 cm) horizontal reach
3.5oz (100g) lifting capacity
0-1.77" (0-4.5cm) grip range
9" x 6.3" x 15" (22.8 × 16 × 38 cm) assembled dimensions
1.5 lbs (658g) weight
white LED gripper light
audible gear indicators prevent damage to gearboxes
