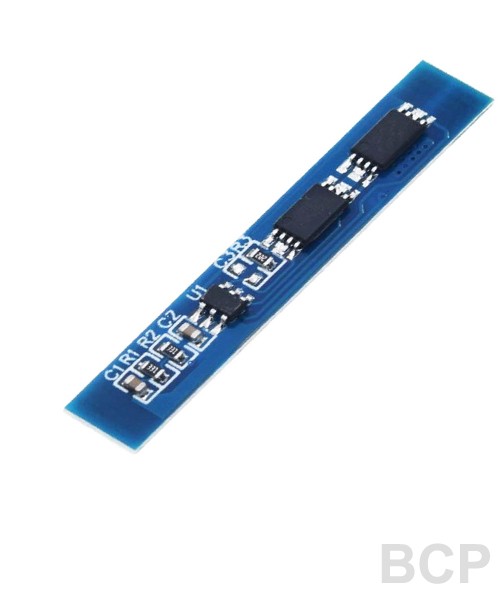

Lithium batteries is now very popular of their superior performance. But for imbalance charging, over discharging, over charging and short-circuit may damage the battery performance. To optimize the battery performance, maximize lifetime and ensuring safe operation is mandatory. Only a well-designed Battery Management System (BMS) can protects and monitors a lithium battery during charging and discharging.
Feature:
Over and Under Voltage Protection
Overcurrent and Short-Circuit Protection
Balance Charging
Note: Output terminal (P+ & P-) will be at 0V initially after attaching batteries between (B+ & BM) and (B- & BM). You need to put external 8.4V between P+ & P- for about 3 seconds to "activate" the BMS board. After that, P+ & P- will provide voltage output according to battery voltage.
.
Specification
Origin: CN
Charging Voltage to P+ & P- : 8.4V (8.5V max, batteries won't charge at more voltage)
Load Current: 3A
Over charge voltage (per battery): 4.25 to 4.35v (±0.05V)
Over discharge voltage (per battery): 2.3 to 3.0v (±0.05V)
Max continuous current: 3A
Max peak current: 5A
Working temperature: -40 to +50 degree centigrade
Storage Temperature:-40 to +80 degree centigrade
Small current: less than 3uA
Life cycle: more than 50000 hours
Resistance: Less than 45m
