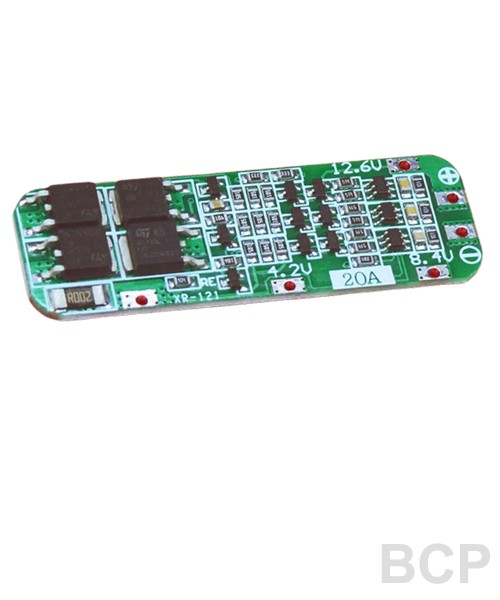

Lithium batteries is now very popular of their superior performance. But for imbalance charging, over discharging, over charging and short-circuit may damage the battery performance. To optimize the battery performance, maximize lifetime and ensuring safe operation is mandatory. Only a well-designed Battery Management System (BMS) can protects and monitors a lithium battery during charging and discharging.
Feature:
Over and Under Voltage Protection
Overcurrent and Short-Circuit Protection
Balance Charging
.
Self-consumption current: 12uA to 24uA
Overcharge protection voltage: 4.2V to 4.3V
Overcharge recovery voltage: 4.1V to 4.3V
Over discharge protection voltage: 2.8V to 3.2V
Over release protection votlage: 2.4V to 2.6V
Over discharge recovery voltage: 2.9V to 3.3V
Over current protection current: 56A to 64A
Over current delay time: 100ms to 200ms
Continuous operating current: 0A to 20A
Ambient temperature: -40 to 85 degree centigrade
