WHY THIS MODULE?
Microcontroller’s flash memory is erased the moment you cut-off its power. To store something permanently we’ll need to write stuff into EEPROM. This module is kind of like a pen drive for your Arduino/ microcontroller. If you pull the pen drive out of your computer, it will not get any power. But surely it’ll store your data. Same goes for this module. There are 0 to 8191 (in hex 0x0000 to 0x1FFF, first two are HIGH addresses and last ones are LOW addresses) addresses where you can store 8 bit data.
For higher resolution images click on this link.
For example codes, please see the 'documents' section.
Specification
Documents
IC used

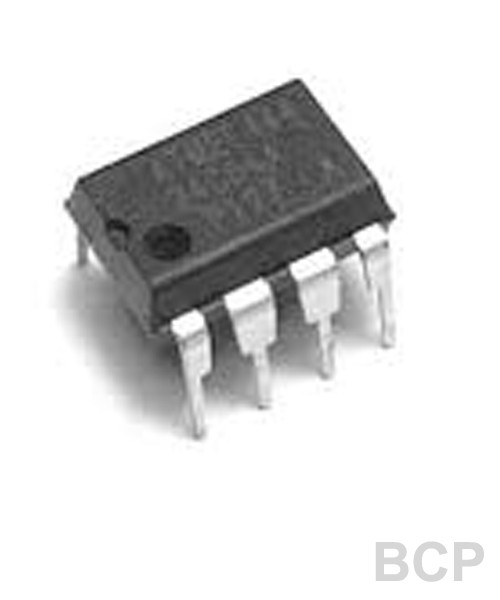

24C64
Memory
8 kB
Board Power Supply
5V
Burn Down Voltage
6.25V
Number of pins needed for communication
2
Supported Communication protocol
I2C
Operating Temperature
-55°C to +125°C
Storage Temperature
-65°C to +150°C
Voltage on Any Pin
with Respect to Ground
-1.0V to +7.0V
DC Output Max Current
5.0 mA
Supported Microcontrollers
Any, with I2C like :
ATmega32a, ATmega8A, ATmega16A, ATmega328p etc.
Supported Arduino Boards
Any with I2C like :
Arduino Uno, Arduino Mega, Arduino Nano, Arduino Duemilanove etc.
