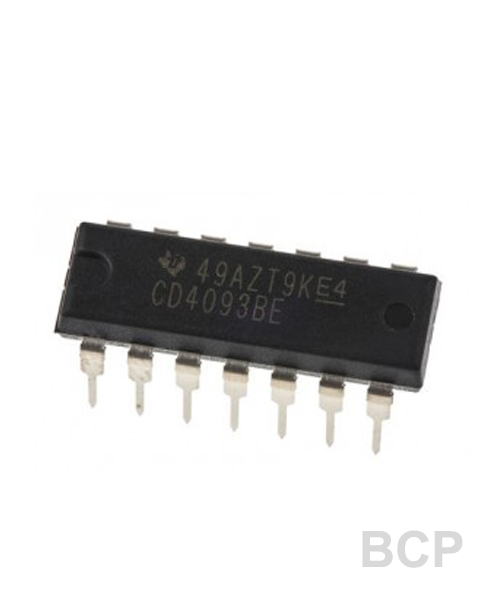

The CD4093B consists of four Schmitt-trigger circuits. Each circuit functions as a 2-input NAND gate with Schmitttrigger action on both inputs. The gate switches at different points for positive and negative-going signals. The difference between the positive (VT +) and the negative voltage (VT-) is defined as hysteresis voltage (VH). All outputs have equal source and sink currents and conform to standard B-series output drive (see Static Electrical Characteristics).
Features
Wide supply voltage range: 3.0V to 15V
Schmitt-trigger on each input with no external components
Noise immunity greater than 50%
Equal source and sink currents
No limit on input rise and fall time
Standard B-series output drive
Hysteresis voltage (any input) TA = 25°C Applications
Wave and pulse shapers
High-noise-environment systems
Monostable multivibrators
Astable multivibrators
NAND logic
Specification:
Supply Voltage Range:-0.5V to +20V
Input Voltage Range,All Inputs:-0.5V to VDD+0.5V
DC Input Current,Any One Input:±10mA
Power Dissipation Per package:500mW(For TA=-55°C to +100°C)
