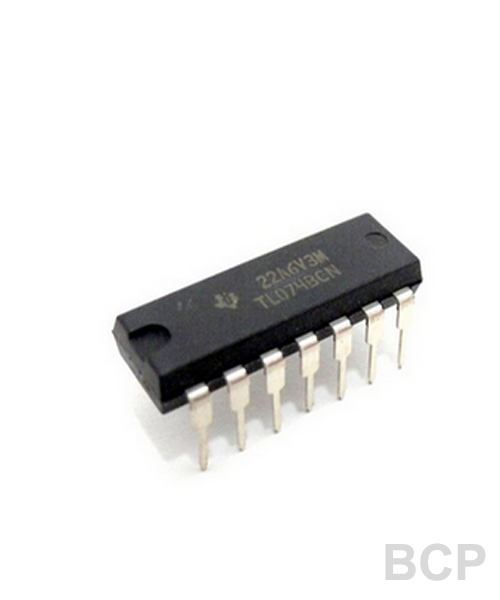

The TL074, TL074A and TL074B are high speed J–FET input quad operational amplifiers incorporating well matched, high voltage J–FET and bipolar transistors in a monolithic integrated circuit.The devices feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.
Features
Wide common-mode (up to vcc +) and differential voltage range
Low input bias and offset current
Low noise en = 15nv//hz (typ)
Output short-circuit protection
High input impedance j–fet input stage
Low harmonic distortion : 0.01% (typ)
Internal frequency compensation
Latch up free operation
High slew rate : 13v/ms (typ)
