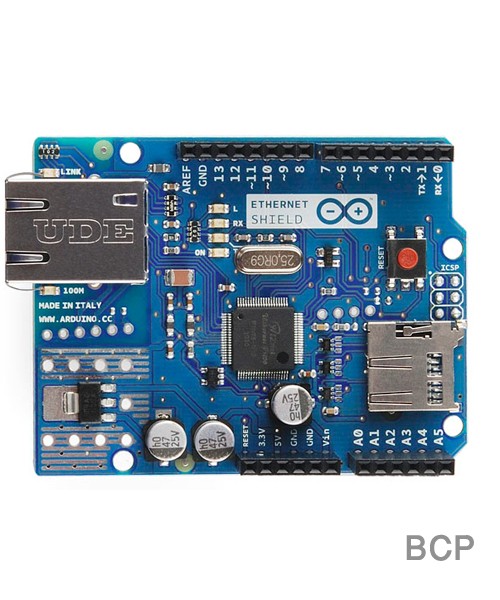

Ethernet Shield instantly enables internet connectivity for Arduino projects. An on-board Wiz5100 ethernet controller handles up to four TCP and UDP connections, just stack it onto an Arduino to create your own networked devices. Easily check connection status with on board indicator lights. Extend your design further with two extra rows of pin header that connect to shields and prototyping boards.
Features
Standard Arduino and Arduino Mega compatible
Arduino Ethernet Library compatible
Standard RJ45 ethernet Jack
16K byte internal buffer
Indicator LEDs for all functions
Easy to access reset button
Standard pin headers for 0.1" grid prototyping boards
Up to 4 TCP/UDP network connections
To know more about this product, please visit this page.
Item
Min
Typical
Max
Unit
Voltage
3.5
5
5.5
V
Current
120
210
350
mA
Dimension
72.6 x 58.4 x 23.2
mm
Supported Connection
TCP/UDP
/
Net Weight
24.2
g
