1. All MCU IO port leads out clearly marked pin header experiment more convenient.

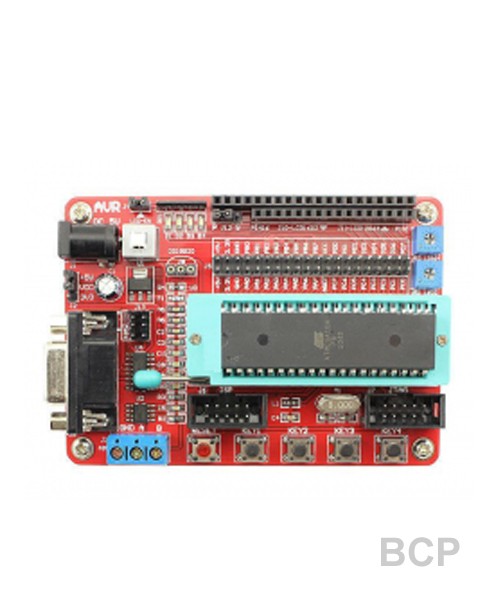

2. Classic ATmega32A minimum system, eliminating welding trouble
3. Crystal: The socket hole welding, the convenience of buyers replace the crystal, the crystal default 8M, can put directly on the line with the other frequency crystal oscillator.
4. Support Chip: ATMEGA16L / ATMEGA16 / ATmega16A / ATmega32 chip and other pin-compatible with the chip, the board is with a default new version ATMEGA32A .
5. Power supply:
External DC power supply
Power Supply with USB power lines
ISP downloader or JTAG emulator for power supply board
6. In addition to external expansion pin microcontroller contains IO estuary, 5V 3.3V GND also been pin out. Convenient device for the external power supply.
7. Reset: power-on reset and reset buttons
8. Four independent programmable buttons
9. Standard ISP download interface
10. The standard JTAG interface
11. LCD1602 and LCD12864 LCD interfaces
12. DS18B20 temperature sensor interface
13. RS232 and RS485 communication interface
14. can choose 5V or 3.3V for the board with jumper
Packing:
1 x ATmega32A Board
1 x USB Cable
1 x Learning CD-ROM (containing software, example programs, schematics, learning materials, tutorial chinese)
