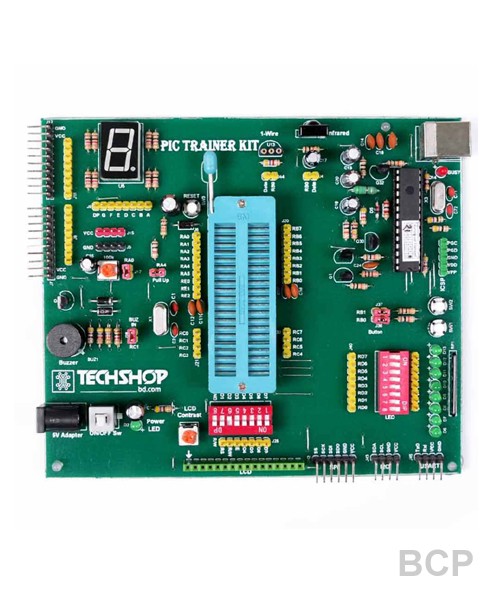

PIC Board Features
1)ZIF Socket for PIC16F877A and PIC18F452, with accessible I/O, grouped by PORT.
2)On board Programmer.
3)USB connector, connection with PC.
4)Crystal Oscillator (Default 16MHz). It’s replaceable.
5)External Supply Socket (5V).
6)SPI Pinout.
7)ICSP Pinout.
8)USART Pinout.
9)I2C Pinout.
10)Seven Segment Display Interfacing.
11)LCD Interfacing Connector.
12)LCD Contrast.
13)ADC Interfacing.
14)Push Button Interfacing.
15)I/O Expander.
16) RESET Circuitry.
17) 8 LEDs Interfacing.
18) Buzzer Interfacing.
19) Infrared Interfacing.
20)1-WireCommunication Interfacing.
21) Power Switch.
22) Vcc-GND power pin.
The kit contents:
Pic Trainer Kit.
Standard USB cable (A to B).
DVD (Contains User Manual, compiler, loader software,Simulation software & sample codes)
