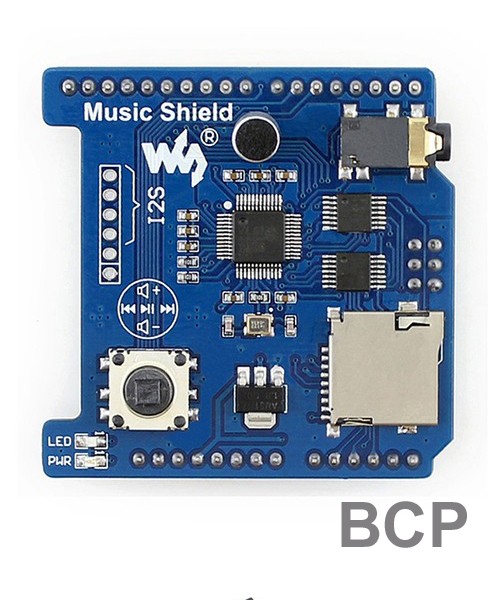

Music Shield is an Arduino expansion board for playing/recording audio, features onboard audio codec chip VS1053B and a TF card slot, supports common used audio formats.
Features
Arduino standard interfaces, compatible with Arduino boards like Arduino UNO, Leonardo, NUCLEO, XNUCLEO
Supported formats : MP3/AAC/WMA/WAV/MIDI, etc.
Onboard TF card slot, audio files in TF card can be played directly
Onboard MIC for recording, with standard 3.5mm 4-segment headphone jack
Onboard voltage level converter 74VHC125, compatible with 3.3V/5V MCUs
One-key control, play music and adjust volume easily by the navigation key
Features I2S and MIDI interface for functional expansion
Note : Limited by the transmission speed and memory shortage, Arduino boards like UNO and Leonardo can neither play WAV files, nor use the recording function. NUCLEO or Due are recommended.
Music Shield is an Arduino expansion board for playing/recording audio, features onboard audio codec chip VS1053B and a TF card slot, supports common used audio formats.
Note : Limited by the transmission speed and memory shortage, Arduino boards like UNO and Leonardo can neither play WAV files, nor use the recording function. NUCLEO or Due are recommended.
