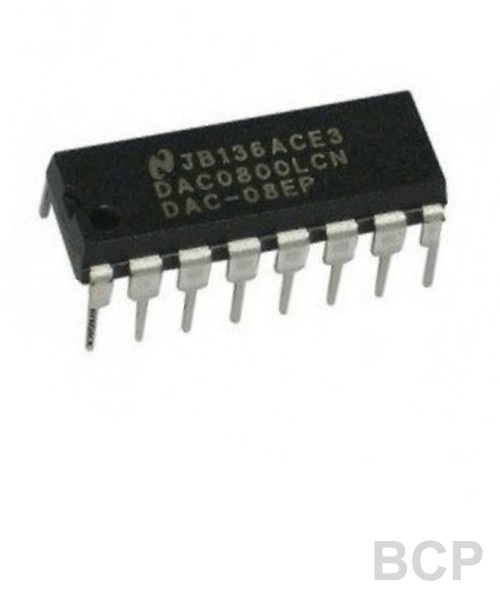

The DAC0800 series are monolithic 8-bit high-speed current-output digital-to-analog converters (DAC) featuring typical settling times of 100 ns. When used as a multiplying DAC, monotonic performance over a 40 to 1 reference current range is possible. The DAC0800 series also features high compliance complementary current outputs to allow differential output voltages of 20 Vp-p with simple resistor loads. The reference-to-full-scale current matching of better than ±1 LSB eliminates the need for full-scale trims in most applications, while the nonlinearities of better than ±0.1% over temperature minimizes system error accumulations. The noise immune inputs will accept a variety of logic levels.The performance and characteristics of the device are essentially unchanged over the ±4.5V to ±18V power supply range and power consumption at only 33 mW with ±5V supplies is independent of logic input levels.
Features
Fast settling output current: 100 ns
Full scale error: ±1 LSB
Nonlinearity over temperature: ±0.1%
Full scale current drift: ±10 ppm/°C
High output compliance: −10V to +18V
Complementary current outputs
Interface directly with TTL, CMOS, PMOS and others
2 quadrant wide range multiplying capability
Wide power supply range: ±4.5V to ±18V
Low power consumption: 33 mW at ±5V
Low cost
.
Specification
Documents
Supply Voltage (V+ − V−): ±18V or 36V
Power Dissipation : 500 mW
Reference Input Differential Voltage (V14 to V15) V− to V+
Reference Input Common-Mode Range (V14, V15) V− to V+
Reference Input Current: 5 mA
Logic Inputs: V− to V− plus 36V
Analog Current Outputs(VS− = −15V) :4.25 mA
