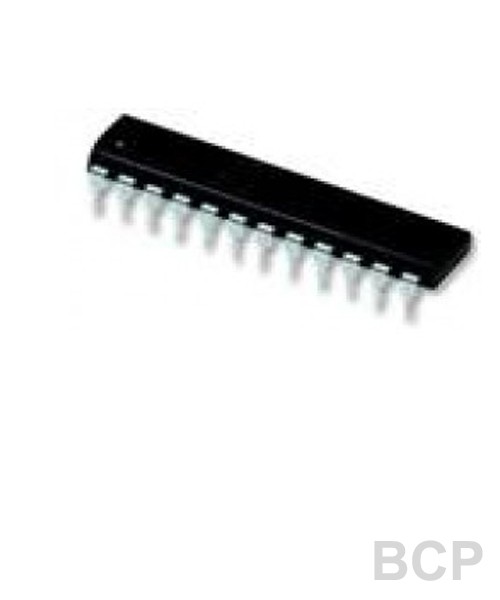

The MAX220–MAX249 family of line drivers/receivers is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available. These parts are especially useful in battery-powered systems, since their low-power shutdown mode reduces power dissipation to less than 5μW.
Applications
Portable Computers
Low-Power Modems
Interface Translation
Battery-Powered RS-232 Systems
Open-Line Detection (MAX2
.
Specification
Documents
Supply Voltage (VCC):-0.3V to +6V
Input Voltages
TIN:-0.3V to (VCC - 0.3V)
RIN (Except MAX220):±30V
RIN (MAX220):±25V
TOUT (Except MAX220):±15V
TOUT (MAX220):±13.2V
Output Voltages
TOUT:±15V
ROUT:-0.3V to (VCC + 0.3)
