This pair consists of an RF transmitter and receiver. These can be interfaced with Encoder and Decoder ICs. For better accuracy, antenna should be used at transmitter and receiver ends.

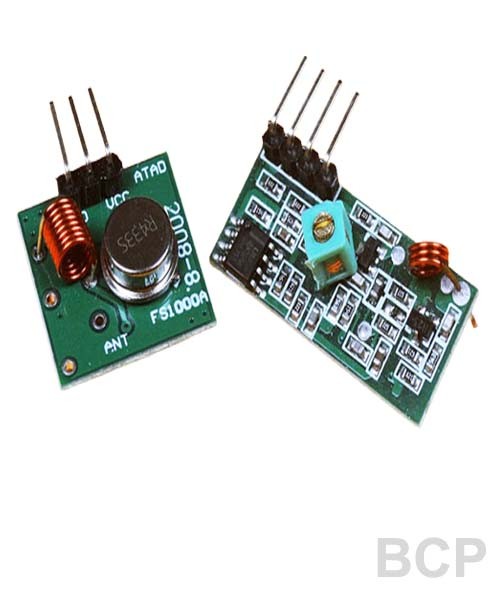

We have two different 433MHz RF modules: the RXB6 and the FS1000A. Both of them runs with the same code and user interface.
RXB6
FS1000A
Quality of reception
Very good
Good but not great
Transmitter Signal Noise
LOW
HIGH
Transmitter Current consumption
6.7mA
3.8mA
Buy RXB6 433MHz modules from here.
.
Specification
Frequency: 433 MHz.
Modulation: ASK
Receiver data output: High - 1/2 Vcc, Low - 0.7v
Transmitor input voltage: 3-12V (high voltage = more transmitting power)
Receiver Input Voltage : 3.3-6V (high voltage = more receiving power)
Transmitting range (work at 5V): 40m indoor, and 100m in open air
