Product package contains 1 solar cell.

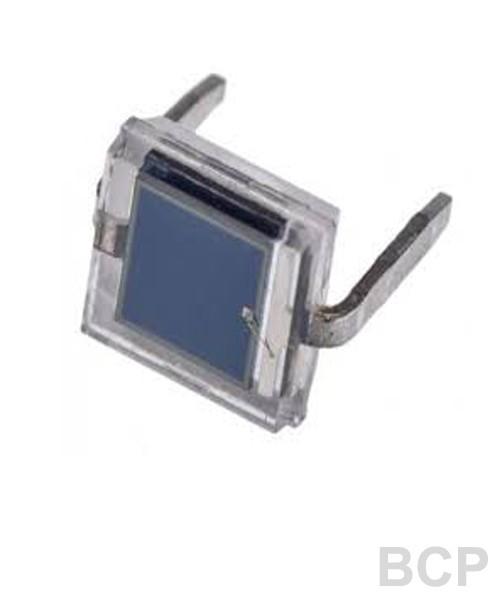

The BPW34 is a tiny, general purpose PiN photodiode. This photodiode has a ton of uses, one of which is to use it is a mini solar cell to power your project. The cell is sensitive to a wide range of light wavelengths (430-1100nm), so it should produce power in a number of different settings. The rated open circuit voltage is 350mV (900nm, 1mW/cm2 light source), and short circuit current is 47μA.
These are fun (of course)! We shined a 940nm infrared LED on one of them and it produced about 0.5VDC open circuit voltage. Stringing four together in series, we were able to turn an LED on with them. They’ll also produce a small voltage, ~250mV, in a brightly, fluorescent-lit room.
Click here to know more about this product.
.
4V output
Works best with natural sunlight
Provides true wireless power
No EMI/RFI generation
Solid state reliability
Small 8-pin surface mount SOIC
.
Documents
Datasheet
App Note
