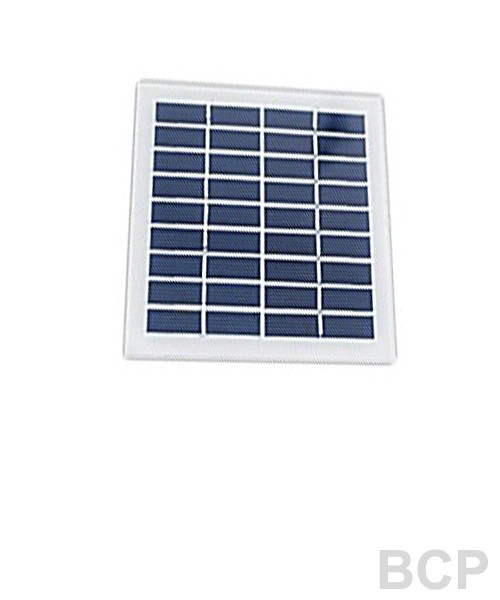

Compact,high quality,high output endurable solar panel.The peak power output is around 9V at 220mA.Can also be used in series to work as recharger for 12V batteries.
Ultra-white glass lamination process provides an efficient and waterproof surface for the panel.The back of the panel has separate aluminium wires.
Note:The above refers to the electrical performance parameters measured under standard test conditions, namely: light intensity 1000W / ㎡, spectrum AM1.5, cell temperature 25 ℃
APPLICATIONS
Solar Powering
Transport sector
Communication /communications
Click here to know more about this product.
Specification
Working voltage: 9V
Operating Current: 220mA
Open circuit voltage: 9.6V
Short circuit current: 500mA
Power: 2W
Use of the environment: -40 ℃ ~ 80 ℃
Performance: corrosion, moisture
Size: Length 135mm(5.31") X width 125mm(4.92")
