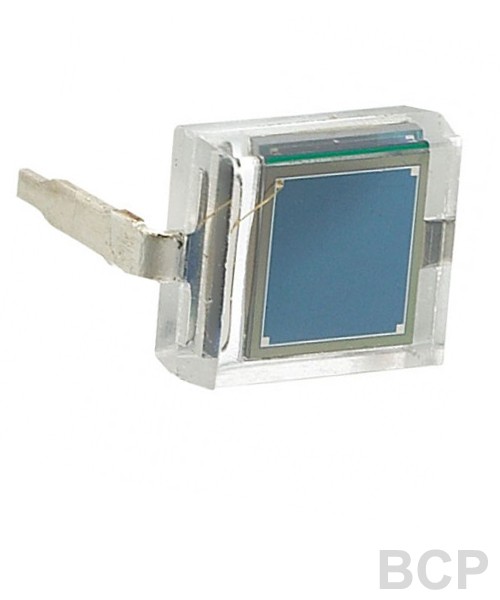

The BPW34 is a tiny, general purpose PiN photodiode. This photodiode has a ton of uses, one of which is to use it is a mini solar cell to power your project. The cell is sensitive to a wide range of light wavelengths (430-1100nm), so it should produce power in a number of different settings. The rated open circuit voltage is 350mV (900nm, 1mW/cm2 light source), and short circuit current is 47μA.
To know more about this product,click this link.
.
Specification
Package type: leaded
Package form: top view
Radiant sensitive area (in mm2): 7.5
High photo sensitivity
High radiant sensitivity
Suitable for visible and near infrared radiation
Fast response times
Angle of half sensitivity: phi = ± 65°
Lead (Pb)-free, RoHS compliant
produced voltage:~250mV
Dimensions:
5.4x4.3x3.2 mm
.
Documents
Datasheet
