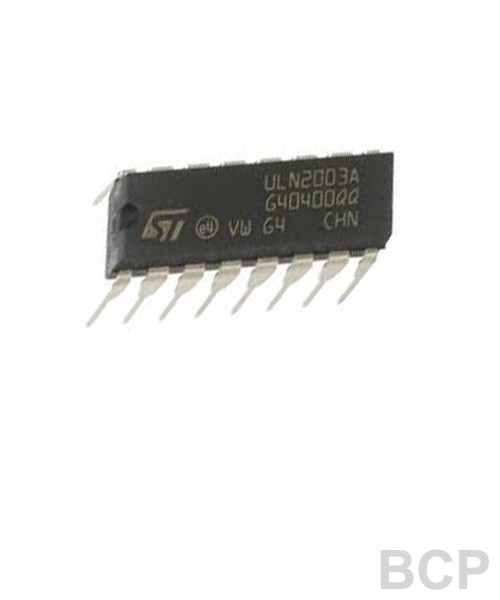

These are high voltage, high current darlington arrays each containing seven open collector darlington pairs with common emitters. Each channel rated at 500mA and can withstand peak currents of 600mA. Suppression diodes are included for inductive load driving and the inputs are pinned opposite the outputs to simplify board layout.
Features
Seven darlington arrays
Output current 500ma per driver
(600mA peak) .output voltage 50v integrated suppression diodes
Inductive loads outputs can be paralleled
Higher current .TTL/CMOS/PMOS/DTL compatible inputs inputs pinned opposite outputs to simplify layout.
.
Specification
Documents
Maximum Output Voltage:50V
Mximum Input Voltage:30V
Storage Temperature Range:-55 to 150°C
