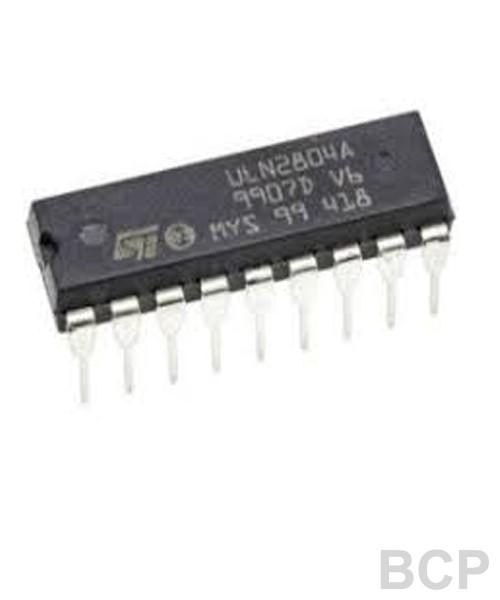

ULN2804 contains eight darlington transistors with common emitters and integral suppression diodes for inductive loads. Each darlington features a peak load current rating of 600mA (500mA continuous) and can withstand atleast 50V in the off state. Outputs maybe paralleled for higher current capability. ULN2804A has a 10.5kW input resistor for 6-15V CMOS. Features Eight darlingtons with common emitters. Output current to 500 mA . Output voltage to 50V. Integral suppression diodes . Versions for all popular logic families. Output can be paralleled inputs pinned opposite outputs to simplify board layout.
.
Specification
Documents
Output Voltage:50V
Input Voltage:30V
Continuous Collector Current:500mA
