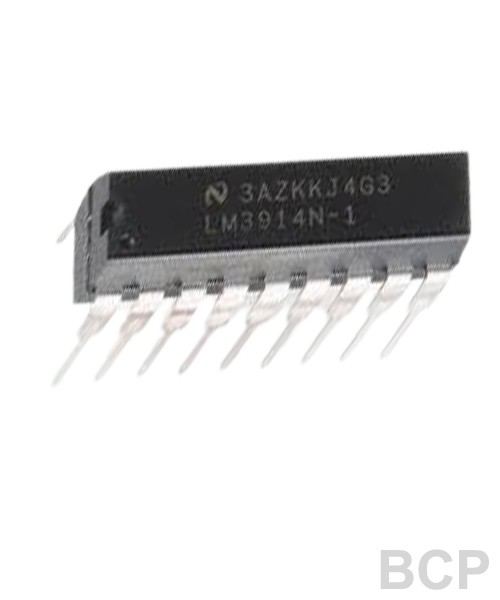

The LM3914 is a monolithic integrated circuit that senses analog voltage levels and drives 10 LEDs, providing a linear analog display. A single pin changes the display from a moving dot to a bar graph. Current drive to the LEDs is regulated and programmable, eliminating the need for resistors.This feature is one that allows operation of the whole system from less than 3V.
.
Specification
Documents
Maximum Power Dissipation: 1365 mW
Maximum Supply Voltage: 25V
Maximum Voltage on Output Drivers: 25V
MaximumInput Signal Overvoltage: ±35V
Divider Voltage: −100 mV to V+
Reference Load Current: 10 mA
